SW30 Function - EVA2 Platform Only

Add OEM Keys in
Locked RFA & BCM

SW30 Lock50 HW04-C OBD Tool for JLR 2020 to 2024+

Add OEM UWB/PEPS Keys when Both RFA & BCM are Locked

Latest Models Make Life Simpler

ADD OEM or Non-OEM Keys into Locked RFA & BCM Vehicles without replacing any modules!

Check Compatibility Watch Demo

EVA2 Platform

Works exclusively with EVA2 vehicles with PIVI Pro

2020 - 2024+

Latest JLR models supported

No Parts Needed

No module replacement required

Under 10 Minutes

Quick and efficient process

Critical Requirements

Compatibility Check

Verify your vehicle meets these requirements before proceeding with SW30

EVA2 Platform with PIVI Pro Required

SW30 works ONLY for EVA2 models that use PIVI Pro infotainment system.

EVA2 platform with PIVI Pro started from 2020 model year and continues through 2024+ vehicles.

This is a platform-specific function designed exclusively for the latest JLR architecture with the advanced PIVI Pro infotainment system.

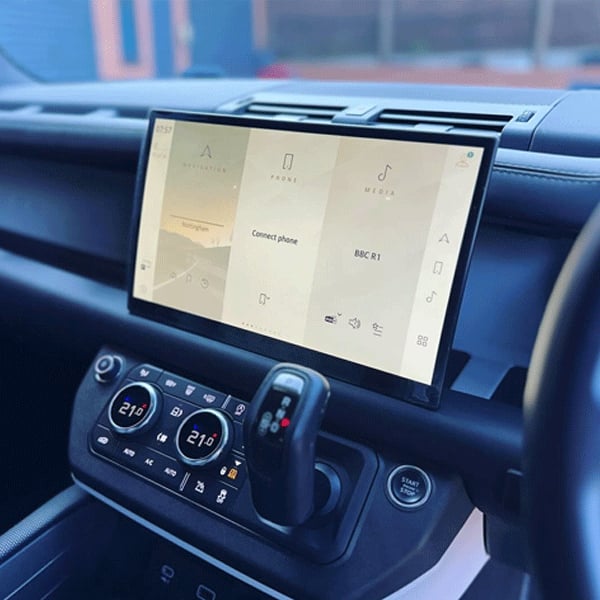

13 inch PIVI Pro screen upgrade

PIVI Pro Infotainment System

2020+

BCM Types Supported

Check Your BCM Software Version

If you see these BCM types, you can use the SW30 function:

L8B2
M8E2
R8E2
S8E2

How to Check BCM Type

  1. 1
    Connect Lock50 tool to the vehicle's OBD port
  2. 2
    Run OBD scan in PEPS Utils
  3. 3
    Check the BCM Software Version displayed
  4. 4
    Verify it matches one of the supported types: L8B2, M8E2, R8E2, or S8E2

Platform

EVA2 Only

With PIVI Pro infotainment

BCM Types

L8B2

M8E2

R8E2

S8E2

Model Years

2020 to 2024+

Latest JLR vehicles with EVA2

Important Information

What SW30 Can & Cannot Do

Understanding the capabilities and limitations of the SW30 function

✓ What SW30 CAN Do

ADD New Keys

This function lets you ADD new keys into the Locked RFA & BCM without replacing any modules.

OEM or Non-OEM Keys

Works with both OEM and Non-OEM keys in locked RFA & BCM vehicles.

Works with Locked Modules

Functions perfectly even when both RFA and BCM are locked.

No Module Replacement

Add keys without swapping or replacing RFA or BCM modules.

✗ What SW30 CANNOT Do

Cannot Delete Old Keys

This function does NOT allow you to delete old keys from the system.

Cannot Erase Key Memory

You cannot clear the existing key list - only add to it.

To Delete Old Keys:

A new RFA must be flashed with Lock50 after being replaced, then keys programmed again.

Learn about key deletion methods

In Summary

SW30 is perfect for adding spare keys or making additional keys when both RFA and BCM are locked. However, if you need to delete old keys or start fresh, you'll need to use other Lock50 functions that involve RFA replacement or unlocking.

Explore Related Functions

SW36 Key Copy

Copy keys when RFA is locked

View Guide

SW40 RFA Unlock

Unlock EVA2 RFA to erase keys

View Guide

ARM OFF Methods

Disable alarm during programming

View Guide

Compare Functions

SW30 vs SW36 vs SW40 guide

Compare

Not sure which method to use? Each function solves different scenarios for locked RFA/BCM vehicles.

View Complete Comparison Guide
Step-by-Step Process

How to Add Keys with SW30

Two methods available depending on your situation and available keys

1

Method 1: With Working Keys

Place 2 Working Keys on Passenger Seat

Simply add your 2 working keys on the passenger seat during the programming process when instructed by the Lock50 software.

Run Add Keys Option

  1. 1
    Go to Key Learning in Lock50 software
  2. 2
    Add your new key on the Lock50
  3. 3
    Place the new key on the seat when instructed
  4. 4
    Follow Lock50 JLR Keys Tools Software instructions to finish
2

Method 2: With InControl App

Packages That Support Service Mode

Service Mode OBD key programming is available with these Lock50 packages:

Package A Package B Package C Package C+

Client Activates Service Mode

If your client has the InControl app on their mobile device, they can activate service mode remotely.

This method doesn't require physical keys on the seat during programming

Program Keys via OBD

With service mode enabled:

  • Add OEM keys via OBD
  • No need to touch RFA or BCM modules
  • Works even with locked modules

Fastest method when InControl app is available

Different Key Scenarios

Have 1 Key

You need 2 keys for SW30 to work. If you only have 1 key:

Use SW36 Duplicator to make a copy of the 2nd key first

Learn about SW36

Have 0 Keys (All Lost)

When all keys are lost, you need to create 2 keys first:

Use Duplicator SW36 to make copy of 2 keys onto HW13/HW14 keys

Then use SW30 to add OEM or Non-OEM keys

Learn about SW36

Client Has InControl App

If your client has the InControl app:

Enable Service Mode via the app

Add OEM keys via OBD without swapping modules or using physical keys on seat

Easiest & fastest method!

Tools & Equipment Required

Lock50 HW04-C

Required tool package

OBD Cable

For vehicle connection

2 Working Keys

Or InControl app access

Lock50 Software

Latest version installed

Real-World Demonstrations

Watch SW30 in Action

See actual demonstrations of adding OEM keys in locked RFA & BCM vehicles

Defender 2024 Activity Key Programming

Demo with Lock50 HW04 in Locked RFA & BCM Vehicle

2024 Model Locked RFA & BCM Activity Key

2024 Defender

EVA2 Platform

Both Modules Locked

Successful Add

2023 Range Rover Sport Spare Key OEM

Lock50 C Package Demo - No modules changed

Spare keys or all keys lost - same process Under 10 minutes total No parts used

Key Highlights from This Demo:

  • Add OEM keys in Locked RFA & BCM without using any parts
  • Complete job in under 10 minutes
  • Same process for spare keys or all keys lost scenarios
  • No module replacement or swapping required

Ready to Add Keys with SW30?

Get the Lock50 HW04-C package and start adding OEM keys to locked RFA & BCM vehicles today

View Packages Get Expert Help

Fast Process

Under 10 minutes per key

Safe & Reliable

No risk to vehicle systems

No Parts Needed

No module replacement

Proven Results

Works every time

Explore Related Functions

SW36

Key Duplicator for locked RFA/BCM when you have 0 or 1 key

Learn More

SW27

Programming for unlocked RFA & BCM vehicles (2017-2024+)

Learn More

Key Deletion

Methods to delete old keys and repopulate the system

Learn More
Related Functions

Alternative Key Programming Methods

YOU ARE HERE

SW30 Service Mode

Add OEM keys via service mode on EVA2 vehicles. Requires InControl app or 2 working keys.

SW36 Key Duplicator

Copy keys when RFA is locked. Works even with alarm active. Fastest method for spare keys.

Learn About SW36

SW40 EVA2 Unlock

Unlock EVA2 RFA to erase lost keys. Requires alarm to be disarmed first.

Learn About SW40

Need to Disable Vehicle Alarm?

If the vehicle alarm is active and preventing you from performing key programming, use the ARM OFF function to temporarily disable the alarm system.
