What You'll Need
JLR Key Tool
The main programming device
Windows PC
For software updates
Internet Connection
For downloads and updates
Step 1: Unboxing and Initial Setup
What's in the Box?
- JLR Key Tool Device: The main programming unit
- OBD2 Cable: Connects device to vehicle
- USB Cable: For PC connection and updates
- Power Adapter: Optional AC power supply
- Quick Start Guide: Basic setup instructions
- User Manual: Comprehensive documentation
Important First Step
Before using your JLR Key Tool for the first time, you must update it to the latest firmware. This ensures you have the most current vehicle coverage and bug fixes.
Step 2: Software Installation and Firmware Update
Download Update Software
Visit our support website and download the JLR Key Tool Update Manager. Compatible with Windows 7, 8, 10, and 11 (32-bit and 64-bit).
Install USB Drivers
Run the driver installer included in the download package. Your computer will need to recognize the device before you can update it.
Connect Device to PC
Use the included USB cable to connect your JLR Key Tool to your computer. The device will power on automatically.
Run Update Manager
Launch the Update Manager software. It will automatically detect your device and show the current firmware version.
Check for Updates
Click "Check for Updates" to see if new firmware is available. If an update is found, click "Download and Install". Update time: 5-10 minutes.
Wait for Completion
Do NOT disconnect the device during update. A progress bar will show update status. Device will reboot automatically when complete.
Step 3: Understanding the Interface
Main Menu Navigation
Vehicle Selection
Choose manufacturer (Land Rover/Jaguar), then select specific model and year
Key Functions
Add key, delete key, read key data, all keys lost programming
Diagnostics
Read DTCs, clear codes, view live data, module information
Settings
Language, units, screen brightness, system information
Step 3.5: Understanding Locked vs. Unlocked Keys
Essential Concept for Beginners
Before you start programming keys, you need to understand the difference between locked and unlocked JLR keys. This is crucial for troubleshooting and fixing remote button issues.
Locked Keys
Keys with security encryption enabled. They cannot be:
- Read for key data extraction
- Copied to create duplicates
- Used for RF remote sync
- Modified or reprogrammed
Unlocked Keys
Keys with full access enabled. They can be:
- Read for complete key data
- Copied via OBD or adapters
- Synced for RF remote buttons
- Programmed to vehicles
Critical: Don't Unlock Keys First!
When remote buttons stop working, many beginners jump straight to unlocking keys with HW04. This is wrong and dangerous! Unlocking erases all key data.
Always follow this troubleshooting order instead:

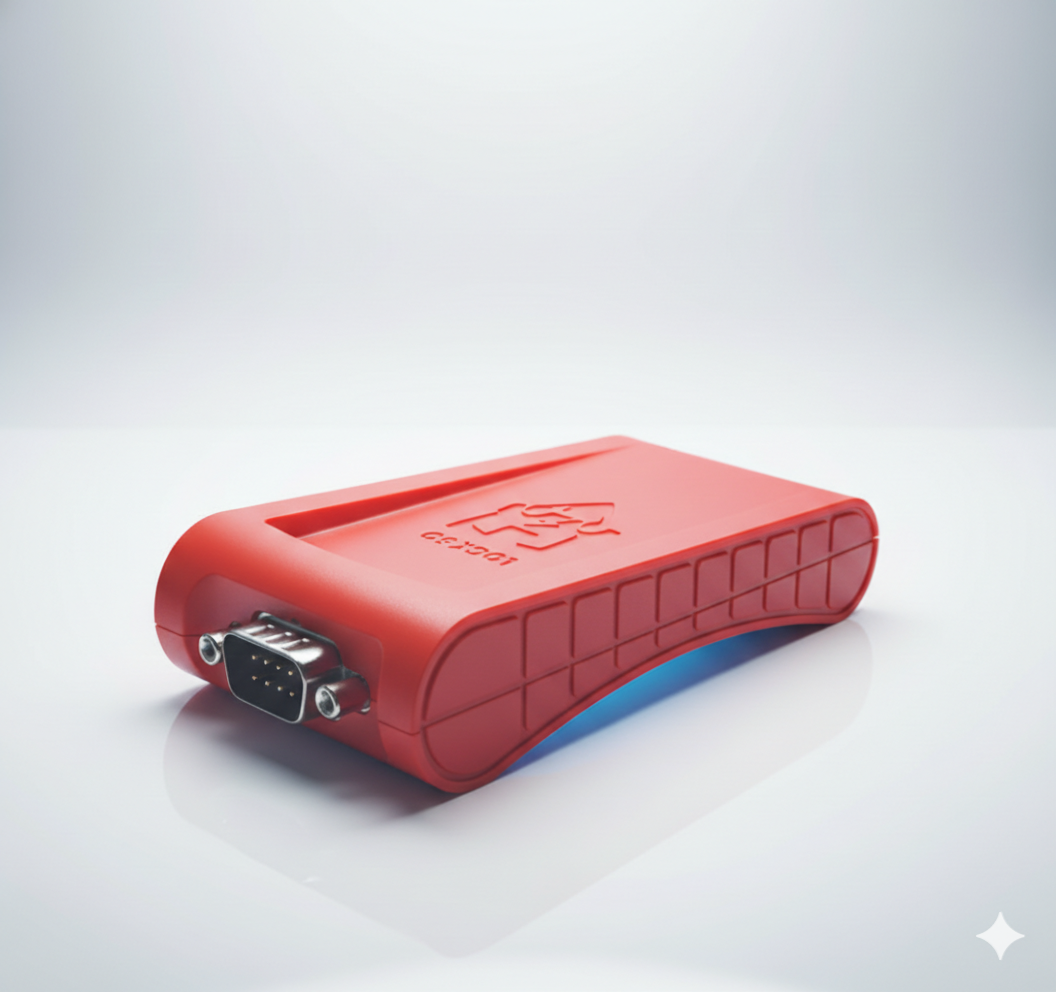

- 1. Try RF Remote Sync on Lock50 HW04 reader (if key is already unlocked)
- 2. Use BCM Rolling Code Sync via OBD (safe, doesn't erase data)
- 3. Only unlock keys if you have Package C+ and steps 1-2 failed
Want to Learn More?
Understanding lock/unlock states is essential for professional key programming. Read our complete guide for detailed information.
Read Complete Key Unlock GuideStep 4: Your First Key Programming
Programming a Spare Key (Easiest Method)
This method requires at least one working key. Perfect for learning the basics.
Prepare the Vehicle
- • Park on level ground in a well-lit area
- • Ensure battery voltage is above 12.5V
- • Close all doors (can leave one cracked to prevent lockout)
- • Turn off all accessories (radio, climate control, etc.)
Connect the Tool
- • Locate the OBD2 port (usually under dash, driver's side)
- • Firmly plug in the JLR Key Tool
- • Turn ignition to ON position (don't start engine)
- • Wait for device to power on and initialize
Select Vehicle
- • Choose "Land Rover" or "Jaguar" from main menu
- • Select your specific model (e.g., "Range Rover Sport")
- • Choose model year range
- • Device will auto-detect your exact vehicle configuration
Add New Key
- • Select "Add Spare Key" from key functions menu
- • Device will read existing keys (shows how many are programmed)
- • Follow on-screen prompts
- • Place new key inside vehicle when prompted
Wait for Completion
- • Programming typically takes 5-7 minutes
- • Do NOT turn off ignition or disconnect device
- • Progress bar shows current operation
- • "Success" message confirms completion
Test the New Key
- • Remove tool from OBD2 port
- • Turn off ignition and exit vehicle
- • Test new key: lock, unlock, trunk release
- • Test engine start with new key
Common Beginner Mistakes to Avoid
Tips for Success
Start Simple
Begin with spare key programming before attempting All Keys Lost scenarios. Build your confidence first.
Read the Manual
The user manual contains vehicle-specific notes and troubleshooting tips. Keep it handy.
Watch Tutorial Videos
Our video library shows real programming sessions. Visual learning helps tremendously.
Join Our Community
Connect with other users in our support forum. Share experiences and get advice.
